69 Jaw Crusher Products Intro

69 Jaw crusher feed size: 250mm-1200mm production :20-800 t / h.

Jaw crusher (jaw broken) is my company through the successful experience of similar products at home and abroad, devote themselves to come up with a highly efficient, energy-saving crushing equipment. Medium-sized jaw crusher is one of the leading products of the company, especially in the design and production of large jaw crusher, at the absolute leading level at home and abroad. Medium-grained (broken jaw) is mainly used for a variety of ores and bulk materials, crushing, crushing compression strength not more than 320Mpa materials, sub-coarse and fine broken two kinds. This series of jaw-breaking product specification is complete, the feed particle size of 125mm ~ 750mm, the device of choice for primary crushing.

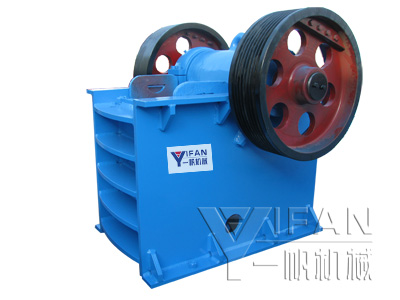

Large jaw crusher, 69PE jaw crusher stone crusher
Large jaw crusher, 69PE jaw crusher stone crusher

Jaw crusher uses: PE and PEX series jaw crusher for large complex pendulum widely applied in mining, metallurgy, construction, highway, railway, water conservancy and chemical industry and many other industries, to handle large size, the compressive strength of not more than 320Mpa ore and rock rough broken or broken job. The PE Series for coarse broken, PEX series is used in thin broken.

69 Jaw Crusher works

Jaw crusher main frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and movable jaw plate, which The bracket also play a role as insurance. PE, PEX series jaw crusher powered motor, motor pulley, the eccentric shaft is driven by the V-belt and sheaves, moving jaw reciprocating predetermined trajectory, which will enter the fixed jaw, movable jaw plate and the side shield crushing cavity composed of the material to be broken, and the finished material is discharged through the lower part of the discharge opening. This series of jaw crusher crushing way for music moving extrusion type, motor-driven belt and pulley, through the eccentric shaft to make the movable jaw up and down movement, when the movable jaw rises larger angle between toggle plate and moving jaw, thus promoting the moving jaw plate close to the fixed jaw plate, at the same time the material is squeezed, rubbing, grinding, such as multiple broken; when the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate trolley leave spring fixed jaw plate, the crushed material is discharged from the crushing chamber mouth cyclical With the motor continuously rotating crusher mobile jaw crushing and nesting to achieve mass production.

69 Jaw Crusher Features

1. Simple structure, easy to use and maintenance; stable performance, low operating costs; broken than large;

2. Crushing cavity is deep and without dead zone, increased capacity and output feed;

3. Broken than large, uniform particle size;

4. Gasketed discharge opening adjustment device, reliable and convenient adjustment range, and increase the flexibility of the device;

5. Lubrication system is safe and reliable, easy to replace parts, maintenance workload is small;

6. Simple structure, reliable operation, low operating costs;

7. Equipment energy-saving: stand-alone energy-saving 15% to 30%, saving more than doubled;

8. nesting population adjustment range, to meet the requirements of different users;

9. low noise, less dust.
