Mobile Stone Crusher

[ print ]   [ collection ] Cone crusher and Circular Vibrating Screen are the unit of fine crushing and screening. They compose the Mobile Crusher( fine crushing unit). Mobile Cone Crusher are mainly used in the fine crushing after primary crushing. It is used in crushshing hard and abrasive materials. The capacity range of Mobile Cone Crusher is 50—250t/h.

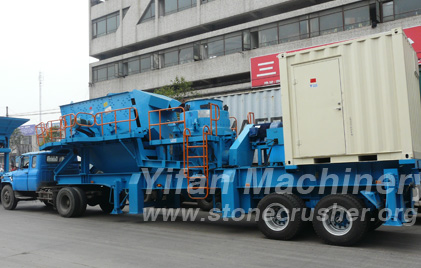

Mobile Stone Crusher
Mobile Stone Crusher

1. Mobile Stone Crusher Application
The Mobile Stone Crusher(mobile crushing and screening plants) is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.
2. Mobile Stone Crusher Features and Benefits
The Mobile Stone Crusher(plants) has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
3.Mobile Stone Crusher Composition and working principle
The Mobile Stone Crusher(mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.

Technical Data:
PP CONE PLANTS PP120SMHS PP180SMHS PP180SMH PP250SMHS PP250SMH
Transport dimensions
Length（mm） 11200 11800 10000 12300 10816
Width（mm） 2743 2743 2480 2900 2743
Height（mm） 4200 4200 4160 4200 4160
Weight（kg） 28400 30500 22400 48700 35700
Axle weight（kg） 15500 16300 14300 31100 22900
King pin weight（kg） 12900 14200 8100 17600 12800
CONE CRUSHER
Model SMH120 SMH180 SMH180 SMH250 SMH250
Feed opening（mm） 160 180 180 240 240
Setting range(c.s.s)（mm） 22-32 22-32 22-32 26-51 26-51
SCREEN
Model 3YK1545 4YK1548   4YK1848
BELT CONVEYOR
Model     B800×8   B1000×8


The design idea for PP Series Portable Crushing and Screening plant is to totally meet the different requirements of mobile crushing function. This can provide a whole new operation mode that greatly decreases the operation cost.

Mobile Stone Crusher PDF Download (43 Kb, 6 June 2009)
Mobile Stone Crusher PICTURE Download (144 Kb, 6 June 2009) - Return -   - Top -
