Spring Cone Crusher

[ print ]   [ collection ] Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compare with jaw crusher, cone crusher is of stable structure, high efficiency, easy adjustment, economic operation, etc.

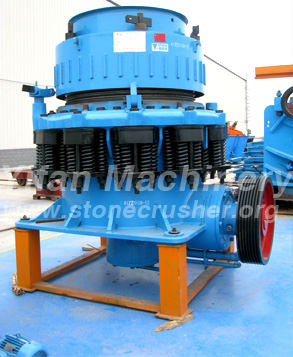

Spring Cone Crusher
Spring Cone Crusher

The spring safety system of crusher acts as an overloading protection system that allows metal to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separate to make sure reliable performance. The type of crushing chamber depends upon size of feeding and fineness of crushed product. The standard type (SDY) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

Spring Cone Crusher Technical Data:
Type Max. input (mm) Adjusting range of output (mm) Capacity (t/h) Motor power (kW)
SDY600B 62-93 6-13 16-73 30
SDY600D 30-45 3-5 9-50
SDY900B 87-155 9-25 46-164 75
SDY900D 35-65 3-6 27-127
SDY1200B 107-220 9-25 64-319 132
SDY1200D 46-102 5-16 50-218
SDY1300B 120-220 13-25 109-360 160
SDY1300D 55-115 3-16 36-237
SDY1700B 180-315 16-38 182-683 220
SDY1700D 60-115 5-13 91-337

Notice: Any change of Cone Crusher technical data shall not be advised additionally. - Return -   - Top -
