Ring Hammer Crusher

[ print ]   [ collection ] PCH series ring hammer crusher is to crush the material by the high-speed rotating hammers. This ring hammer crusher has the characteristics of simple structure, large crushing ratio, and high production efficiency. It can be used to crush the dry or wet materials. It is used to crush the mid-hard and low-abrasive materials, whose compressive strength is not more than 100MPa, and whose moisture percentage is not more than 15%. The common materials are coal, salt, chalk, gypsum, limestone, and so on. It is also used to crush the wood pieces, paper, and asbestos cement waste, which are fiber-structural, elastic and strong tenacity. Ring hammer crusher is not only used in aggregate or sand production line, but also in mineral selection process instead of cone crusher.

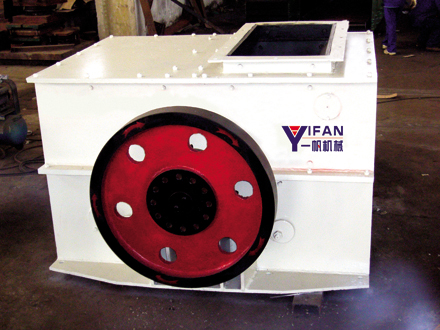

Ring Hammer Crusher
Ring Hammer Crusher

PCH Series Ring Hammer Crusher is used to crush coal, especially brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 15%. It has the following features: energy-saving, fine output size, higher efficiency, and lower noise, less dust pollution and so on.

Application of PCH Ring Hammer Crusher

PCH series ring hammer crusher is a machine which is utilized to crush the brittle materials, like coal, coal gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100MPa, and its moisture content does not surpass 15%. The discharge opening can be adjusted according to the customer’s requirements.

Working Principle

PCH series ring hammer crusher is an impact rotor-type crusher with hammer ring. The materials are impacted and crushed by the high-speed rotating hammers after entering the chamber. The crushed materials get the impetus energy from the hammers, and then they will impact on the crushing plate. After the secondary crushing process, the materials fall on the sieve plate. Then the materials are crushed again after being sheared, extruded, and grinded, and then drop out. Unbroken matters enter the metal collector, which are cleaned periodically.

Main technical parameters:
Model PCH-0402 PCH-0404 PCH-0604 PCH-0606 PCH-0808 PCH-1010 PCH-1016 PCH-1216 PCH-1221
Speed of Rotor(r/min) 960 970 970 980 740 740 740 740 740
Rotor(Diametr× Length) (mm) 400× 200 400× 400 600× 400 600× 600 800× 800 1000× 1000 1000× 1600 1200× 1600 1200× 2100
Max Feed Size(mm) 200 200 200 200 200 300 300 400 400
Discharge Size(mm) ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30
Motor Model Y132M2-6 Y160L-6 Y180L-6 Y225M-6 Y280M-8 Y315M2-8
Y315M3-8		 Y312-8
Y400-8		 Y400-8
Y450-8		 Y450-8
Motor Power(KW) 5.5 11 15 30 45 90 110 155 220 280 355 450(400)
Moter Voltage 380 380 380 380 380 380 380
6000		 6000 6000
Moter Weight 100 150 170 360 600 1100
1200		 1600
3100		 3600
4100		 4300
Capacity
(t/h)		 8-12 16-25 22-33 30-60 75-105 160-200 200-245 300-350 400-500 500-620 620-800 800-1000


Note: The discharged material size can be chosen willfully within the 0-60mm scope. When it is below 15mm, the output should be 60% of the tabulation data; while it is 3mm, the material moisture does not surpass 10%, the output should be 30% of the tabulation data.
